68CB6
3U OpenVPX High Density Multifunction I/O Board
The 68CB6 is a Configurable Open Systems Architecture™ (COSA®) 3U OpenVPX™ board that is preconfigured with 10 different “inboard” I/O, measurement and communication functions. This Combination-function Board (CB) provides a full suite of some of the most common & useful function interfaces supporting many different applications. The 68CB6 features a wide but dedicated selection of functions: Standard Functionality Discrete I/O (DT1); Successive Approximation Register (SAR) ±100 V Analog-to-Digital (AD); High Voltage Analog-to-Digital (ADF); ±10 V Digital-to-Analog (DA); Thermocouple (TC1) or Resistance Temperature Detector (RT1); Full-bridge Strain Gauge (SG1); Transmission/gear box Chip Detection and Fuzz Burn (CD1); LVDT-to-Digital linear (LD6) displacement (position) measurement, AC Reference Source output (AC2); CAN bus communication (CB8). The 68CB6 offers unparalleled programming flexibility, a wide range of operating characteristics, and a unique design that eliminates the need for external intermediate circuit considerations such as pull-up resistors or mechanical configuration jumpers. Inboard functions are software controlled and memory addressed, accessed in similar COSA® modular fashion to maintain seamless common NAI Software Support Kit & API/library structures.

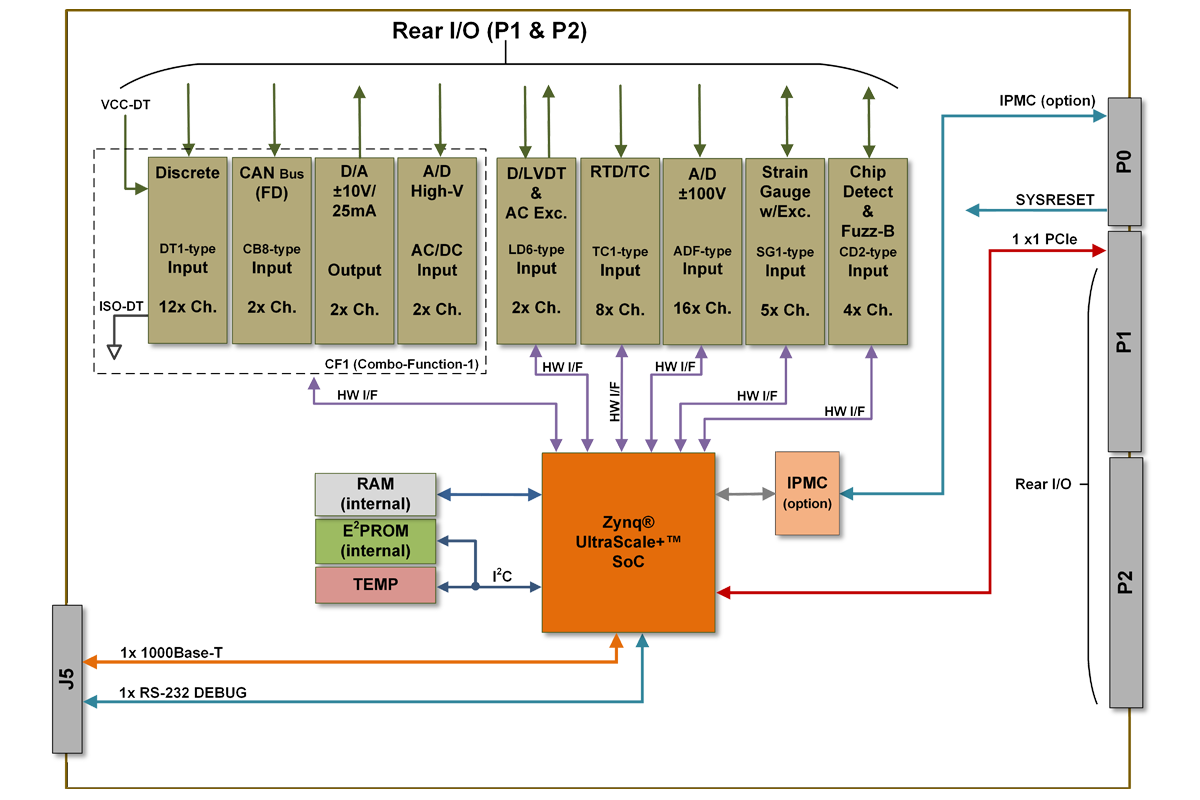

Features
- 3U OpenVPX Profiles MOD3-PER-1U-16.3.3-2, SLT3-PER-1U-14.3.3
- 12 channels of Standard Functionality (SF) Discrete I/O functions
- 16 channels of independent 16-bit Successive Approximation Register (SAR) ±100 V Analog-to-Digital (A/D)
- 2 channels of isolated High Voltage Analog-to-Digital (A/D) input functions
- 2 channels of ±10 V Digital-to-Analog (D/A) Output functions
- 8 channels of Thermocouple (TC) or Resistance Temperature Detector (RTD) measurement interface
- 5 channels of full-bridge Strain Gauge (SG) measurement
- 4 channels of transmission/gear box Chip Detection (CD) as well as a Fuzz Burn (FB) circuit interface
- 2 channels of LVDT-to-Digital linear displacement (position) measurement, including
- 2 channels of AC Reference Source output
- 2 channels of CANbus communication with Flexible Data (FD) rate.
| I/O | |||||||
| Function | Inboard Module-type |
Channels | Input Scaling | Resolution | Accuracy (±) | Sampling Rate (max.) | Type |
| A/D Converter | ADF | 16 | ±100, 50, 25, 12.5 or 6.25 VDC |
16-Bit | 0.1% FSR | 200 kSPS | SAR |
| CF1 (A/D High-V) | 2 | ±240 VDC | 24-bit | 100mV | 8 kHz | Sigma-Delta | |
| Function | Inboard Module-type |
Channels | Output Range | Resolution | Accuracy (±) | Settling Time | Current Output (max.) |
| D/A Converter | CF1 (DA1) | 2 | ±5, ±10, 0-5, or 0-10 VDC | 16-Bit | 0.05% FSR | 10 µs typical | ±25 mA |
| Function | Inboard Module-type |
Channels | Input Range | Output Range | Programmable | Current Out (max.) | Comments |
| I/O, Discrete | CF1 (DT1) | 12 | 0-60 VDC | N/A | Input only | N/A | Contact or Voltage Sense |
| Function | Inboard Module-type |
Channels | Voltage Output | Frequency Range | Accuracy (±) | Output Drive | Regulation |
| AC Ref (for LVDT) | (LD6) | 2 | 1-5 kHz | 2-12 Vrms | ±1.5% of setting < 15 kHz; ±3% of setting ≥ 15 kHz |
50 mA (max) | ±1.5% No Load to Full Load (using sense lines) |
| Simulation and Measurement | |||||||
| Function | Inboard Module-type | Channels | Input A/D R Accuracy | Input A/D R Range | Programmable Charge: | FB Discharge Inhibit: | |
| Chip Detect / Fuzz Burn (measurement) | CD2 | 4 | ±5% FS, repeatable | 0 to 100k ohms | 0.25 – 2.25 Joules (±10% of setting) | Discharge inhibited if measured R ≥ 2kΩ | |
| Function | Inboard Module-type |
Channels | Frequency | Resolution | Accuracy (±) | Interface | |
| L(R)VDT/D (measurement) |
LD6 | 2 | 47 Hz to 20 kHz | 16-Bit | 0.025% FSR | 2, 3 or 4-wire programmable | |
| Function | Inboard Module-type |
Channels | A/D Converter | Accuracy (±) | Output Current (Maximum): | Output Data Rate Comments |
|
| Strain Gauge (measurement) |
SG2 | 5 | 32-bit Delta-Sigma | ± 0.1% Full-Scale (FS) range | 100 mA / source | 2.5 to 38,400 Hz | |
| Function | Inboard Module-type |
Channels | Sample Rate | Resolution | Accuracy (±) | Interface | Comments |
| Thermocouple / RTD (measurement) | TR1 | 8 | 3 – 4800 Hz | 24-Bit | 0.2-0.9° C (typ.) 0.2% FSR |
J, K, T, E, N, B, R, S Raw A/D input |
TC type dependent ±100 mV |
| Communication | |||||||
| Function | Module | Channels | CAN Protocol | Message Buffer | Data Rate (Prog.) | Comments | |
| CAN Bus | CF1 (CB8) | 2 | CAN FD | 16K Rx/Tx | 1 Mbps (max.) | Flexible Data Rate | |
6/30/2022 5:16:40 AM
6/30/2022 5:17:23 AM
6/30/2022 5:17:08 AM
The 68CB6 includes SSKs to support multiple operating systems. In addition, SSKs are supplied with source code and board-specific library I/O APIs to facilitate system integration.
3/14/2023 9:49:34 AM
NAI’s Configurable Open Systems Architecture™ (COSA®) offers a choice of over 100 smart I/O, communication, and Ethernet switch functions, providing the highest package density and greatest flexibility of any multifunction I/O board in the industry. Preexisting, fully-tested functions can be combined quickly and easily in an unlimited number of ways. Choose the ideal platform for your application below. Each I/O function has dedicated processing, unburdening the system Single Board Computer (SBC) from unnecessary data management overhead.
